Ex Display Crusader Deluxe Lathe (415V)

Ex Display Crusader Deluxe Lathe
Ex Display Crusader Deluxe Lathe (415V) - Image 2
Lathe detail

Ex Display Crusader Deluxe Lathe (415V)

£4,600.00 inc. VAT

In stock

Stock Code: LAT-CRUS-DRO-EX-1 Category:

Description

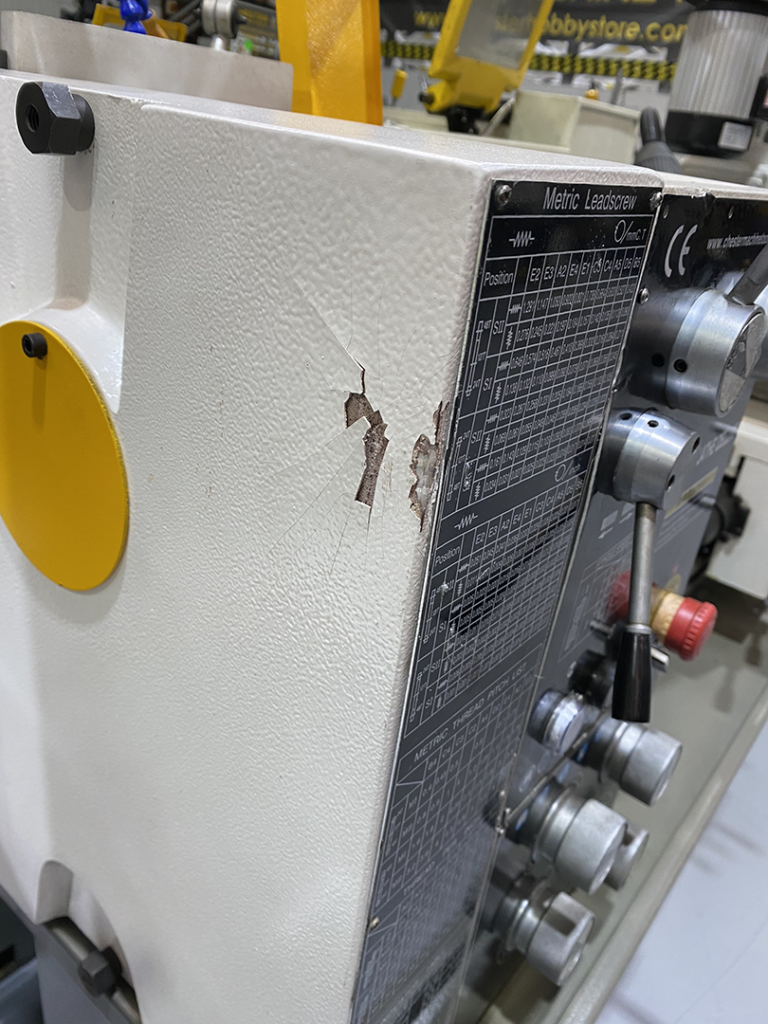

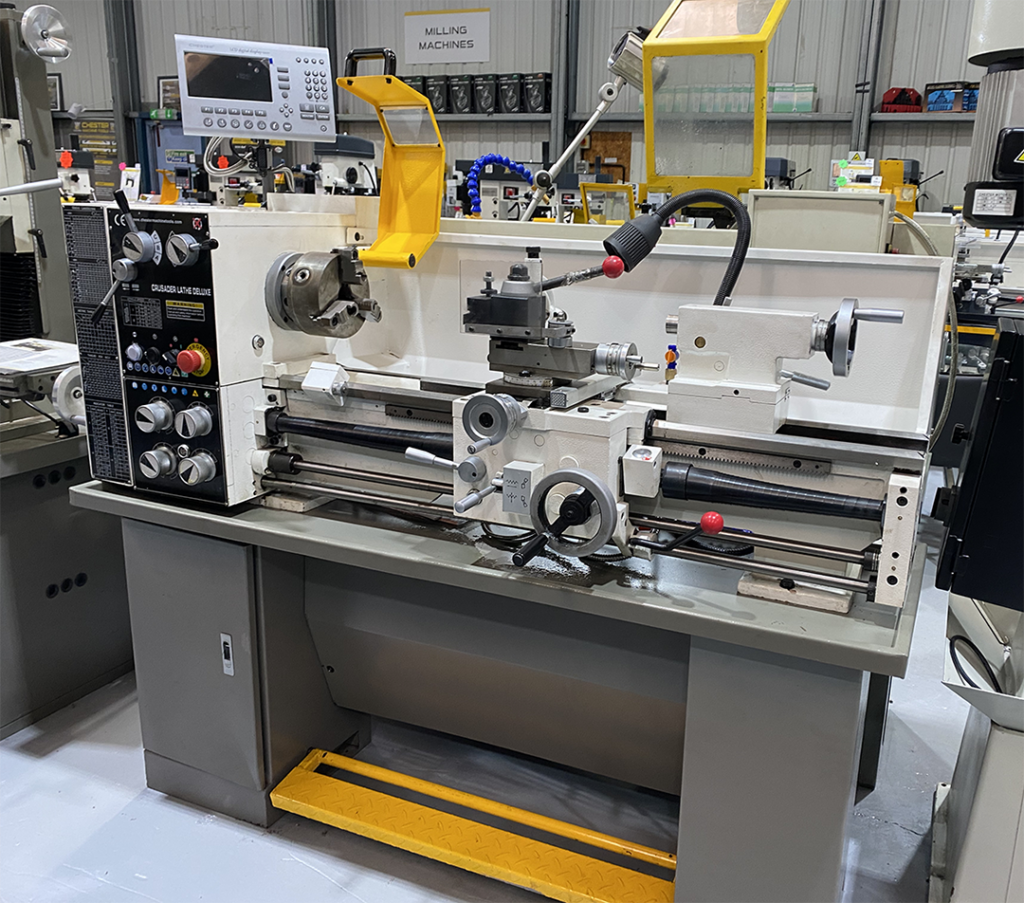

An Ex Display Three Phase (415V) Crusader Deluxe Lathe from our showroom; with some damage as pictured to paintwork.

Model Crusader Deluxe
Centre Height 150mm
Swing over Bed 300mm
Swing over Cross-slide 180mm
Distance Between Centres 900mm
Width of Bed 185mm
Toolpost Tool Size 16mm
Speed Range 50-1200rpm
Longitudinal Travel 760mm
Cross-slide Travel 160mm
Top-slide Travel 75mm
Chuck Diameter 160mm
Spindle Bore 38mm
Spindle Taper MT5
Tailstock Quill Travel 100mm
Tailstock Taper MT3
Motor Power 1.5kW (2hp)
Net Weight 450kg
Dimensions 1780 x 650 x 1160mm
