Challenger Lathe

Sale!

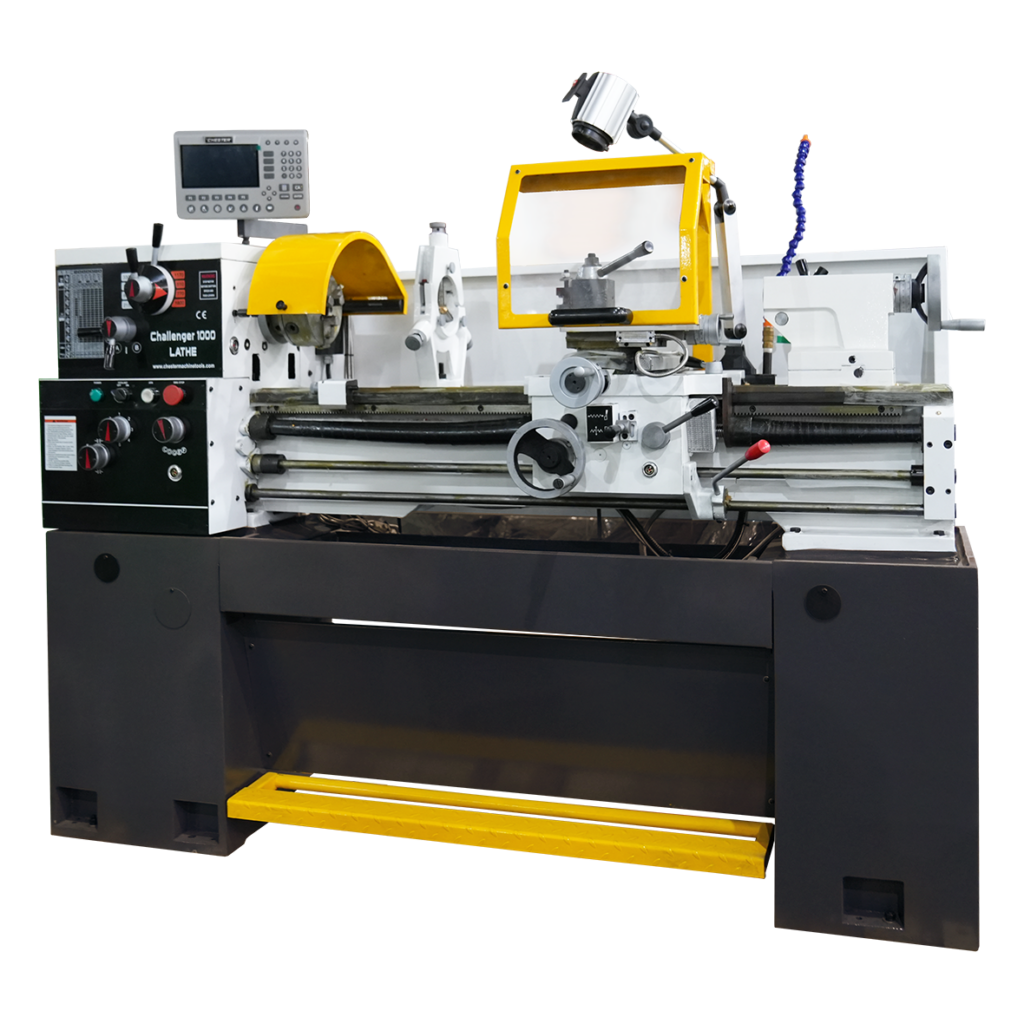

Challenger Lathe

Challenger Lathe

Original price was: £6,190.00.Current price is: £4,440.00. inc. VAT

Precision Lathe for metalworking. Ideal for workshops and training.

Delivery is collection only from our showroom*, or contact us for a quote.

In stock

Stock Code: LAT-CHAL-1000-240 Categories: ,

Description

Our Challenger Lathe is ideal for large hobby workshops and training. An easy to operate machine with 2 Axis DRO.

On offer for a limited time only. Delivery is collection only from our showroom*, or contact us for a quote.

Model Challenger
Centre Height 178mm
Swing over Bed 356mm
Distance between Centres 1000mm
Swing over Cross-slide 220mm
Cross Slide Travel 180mm
Top Slide Travel 100mm
Width of Bed 206mm
Spindle Nose D1-4
Spindle Bore 38mm
Spindle Taper MT5
Number of Spindle Speeds 8
Range of Spindle Speeds 90-1800rpm
Tool Section 16 x 16mm
Tailstock Quill Diameter 45mm
Tailstock Quill Travel 120mm
Tailstock Quill Internal Taper MT3
Longitudinal Feeds 0.043-0.653mm/r
Cross Feeds 0.01-0.220mm/r
Metric Threads 0.40-7.0mm (37 steps)
Imperial Threads 4-112tpi (40 steps)
Leadscrew Pitch 4mm
Motor Power 2.4kW (3hp)
Coolant Pump Motor 0.04kW (0.05hp)
Dimensions 1900 x 710 x 1170mm
Net Weight 750kg



Standard Accessories:

  • 3 Jaw Chuck 160mm
  • 4 Jaw Chuck 200mm
  • Digital Read Out
  • Cast Iron Base
  • LED Machine Lamp
  • Chuck Guard
  • Toolpost Guard
  • Leadscrew Guard
  • Fixed Steady
  • Traveling Steady
  • Full Length Rear Splash Guard
  • Coolant System
  • Foot Brake
  • Four Way Tool Post
  • Thread Chasing Dial
  • Single Position Micrometer Bed Stop
  • Reducing Sleeve
  • Steel Centre
  • Tool Box

*Please allow a few days if collecting this.
