DB7VS Lathe

£1,150.00 inc. VAT

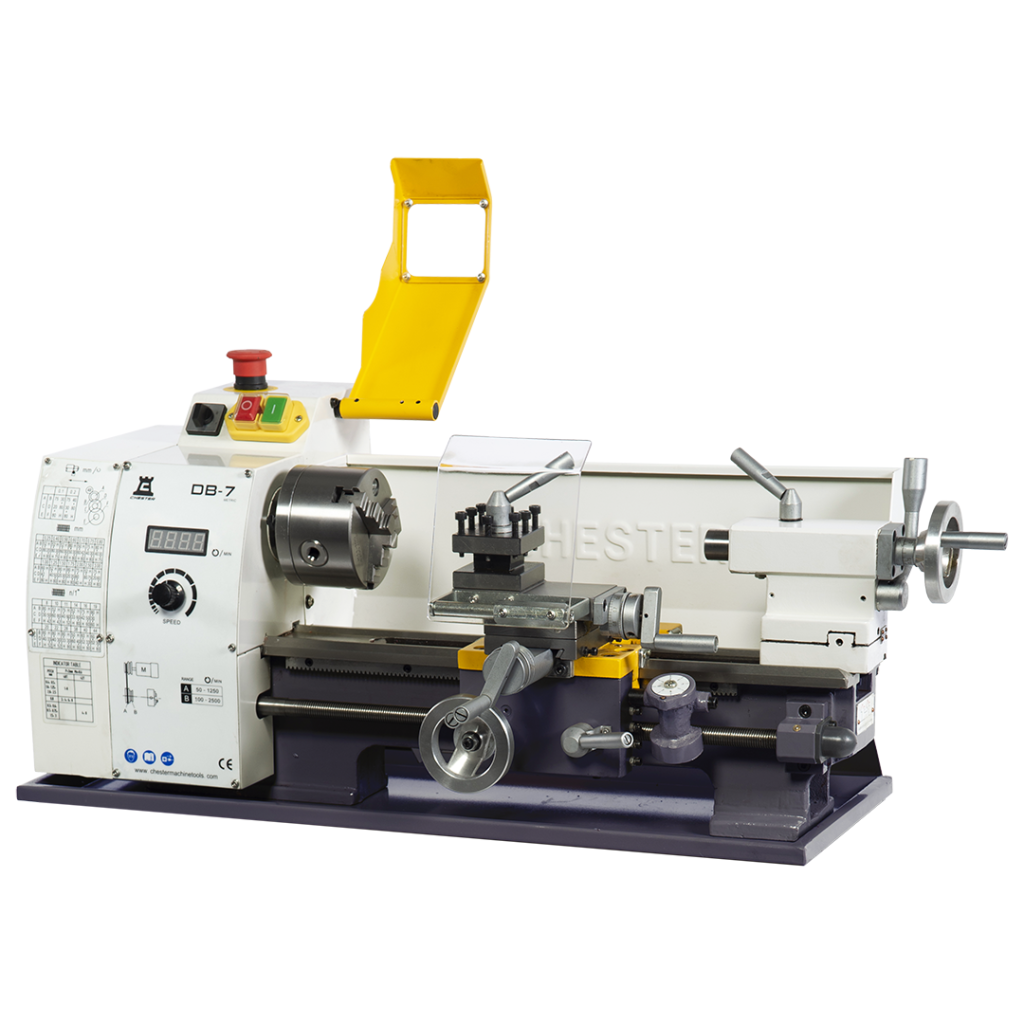

The DB7VS is a quality, compact metalworking lathe with variable speed and digital spindle read out.

Call us on 01244 531631 to place a 10% deposit to secure yours today.

New stock on the way.

Stock Code: LAT-DB7VS-M Category:

Description

The DB7VS lathe is one of our most popular model makers lathes. Providing outstanding reliability and build quality, ideal for bench mounting with an additional stand also available, making it an essential for your home workshop. Featuring all the benefits of our hobby lathes, including variable spindle speed and digital read-out.

Capable of handling metric and imperial thread cutting, making it ideal for a range of uses. Comes complete with accessories including 3 jaw chuck, fixed and travelling steadies and lathe tools.

Additional lathe tools and accessories are available, including toolposts and lathe carriers.

Stands are available to order for this model.

Download Manual Button

Centre Height90mm
Swing Over Bed180mm
Swing Over Cross-slide120mm
Between Centres300mm
Width of Bed100mm
Toolpost Tool Size10mm
Speed Range50-2500rpm
Cross-slide Travel115mm
Top-slide Travel70mm
Chuck Diameter100mm
Spindle Bore21mm
Spindle TaperMT3
Tailstock Quill Travel60mm
Tailstock TaperMT2
Motor Power600W (0.8hp)
Net Weight60kg
Dimensions (WxDxH)780 x 480 x 420mm

Features

  • Digital spindle read-out
  • Hardened and ground V bed-ways
  • Offset tailstock
  • Variable speed
  • Metric and imperial thread cutting



Included Accessories

  • 100mm 3 and 4 jaw chucks
  • Tray
  • Fixed and travelling steadies
  • 10mm lathe tool set
  • Chuck guard
  • Quick release tailstock
