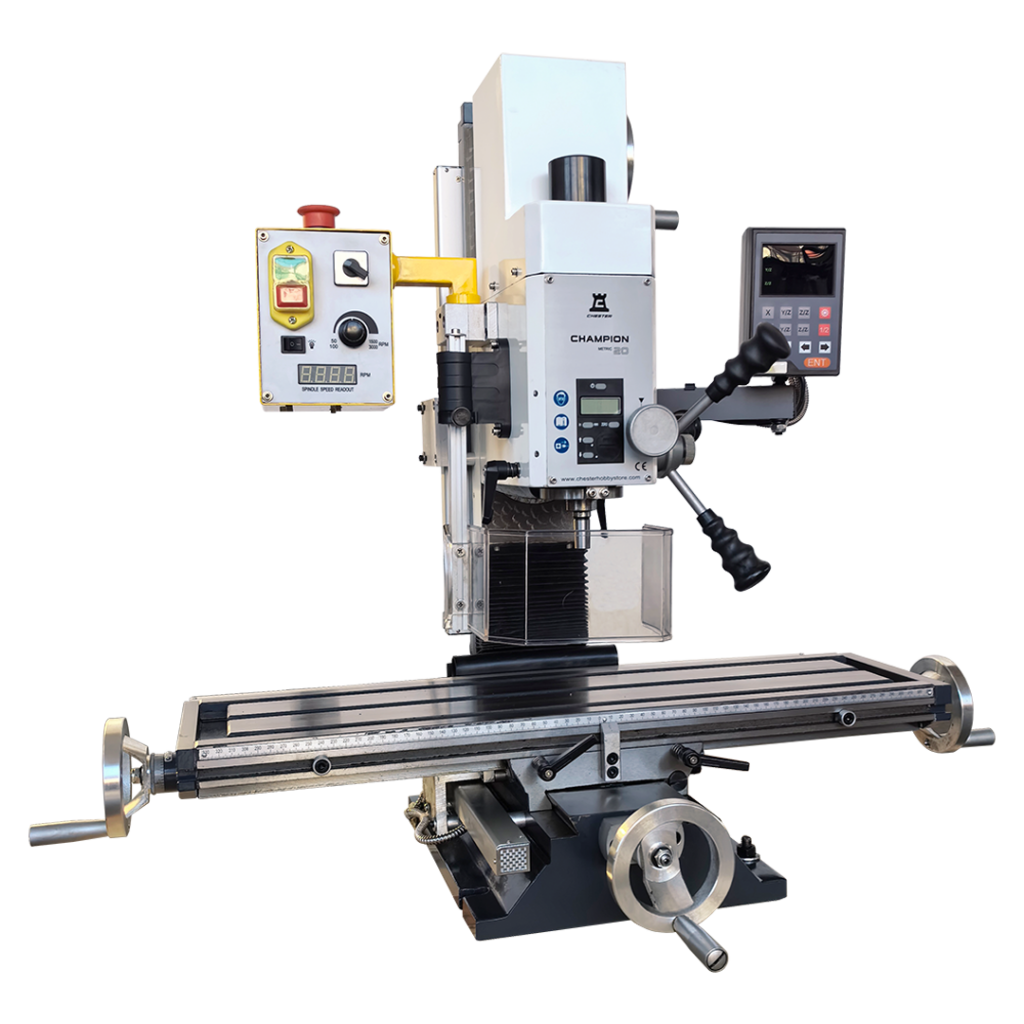

Champion 16VS Mill

Champion 16VS Mill
Champ16VS Specs
Champion16VS Tilt

Champion 16VS Mill

£1,380.00 inc. VAT

The Champion 16VS is a high quality, precision milling machine. Featuring variable speed and speed display.

Call us today on 01244 531631 to place a 10% deposit to secure yours today.



New stock on the way.

Email when stock available

Stock Code: MIL-CHAMP-16VS-FF-DRO Categories: ,

Description

Now with new 3 Axis DRO!

The Champion 16VS Mill is one of our best selling milling machines. Featuring all the benefits of our range of mills, including variable speed and digital display, making it the ideal hobby milling machine.

With high levels of precision and accuracy, capable of achieving spindle speeds up 2500rpm with ±90º headstock tilt and MT2 spindle taper. Comes complete with milling drawbar and drill chuck with arbor.

Additional tools and accessories are available for use with this model, including collet chucks and HSS end mills.

Tray included. Stands are available to order for this model.

Download Manual Button

Drilling Capacity 16mm
End Milling Capacity 16mm
Face Milling Capacity 52mm
Table Size 500x140mm
Cross Travel 160mm
Longitudinal Travel (X) 310mm
Cross Travel (Y) 145mm
Vertical Travel (Z) 200mm
Distance Spindle-Cross Table 280mm
T-slot Size 10mm
Spindle Bore Taper MT2/M10
Sleeve Travel 50mm
Range of Spindle Speeds 50-2250rpm
Headstock Tilt Left & Right ±90°
Motor Power 0.6Kw (0.80hp)
Dimensions (LxWxH) 520x510x840mm
Net Weight 70kg

Features

  • Dovetail column
  • Variable speed
  • Tilting head
  • Speed display



Included Accessories

  • 1-13mm drill chuck with arbor
  • Milling drawbar
