Indexable Boring Bar Sets

4 Piece Indexable Boring Bar Set

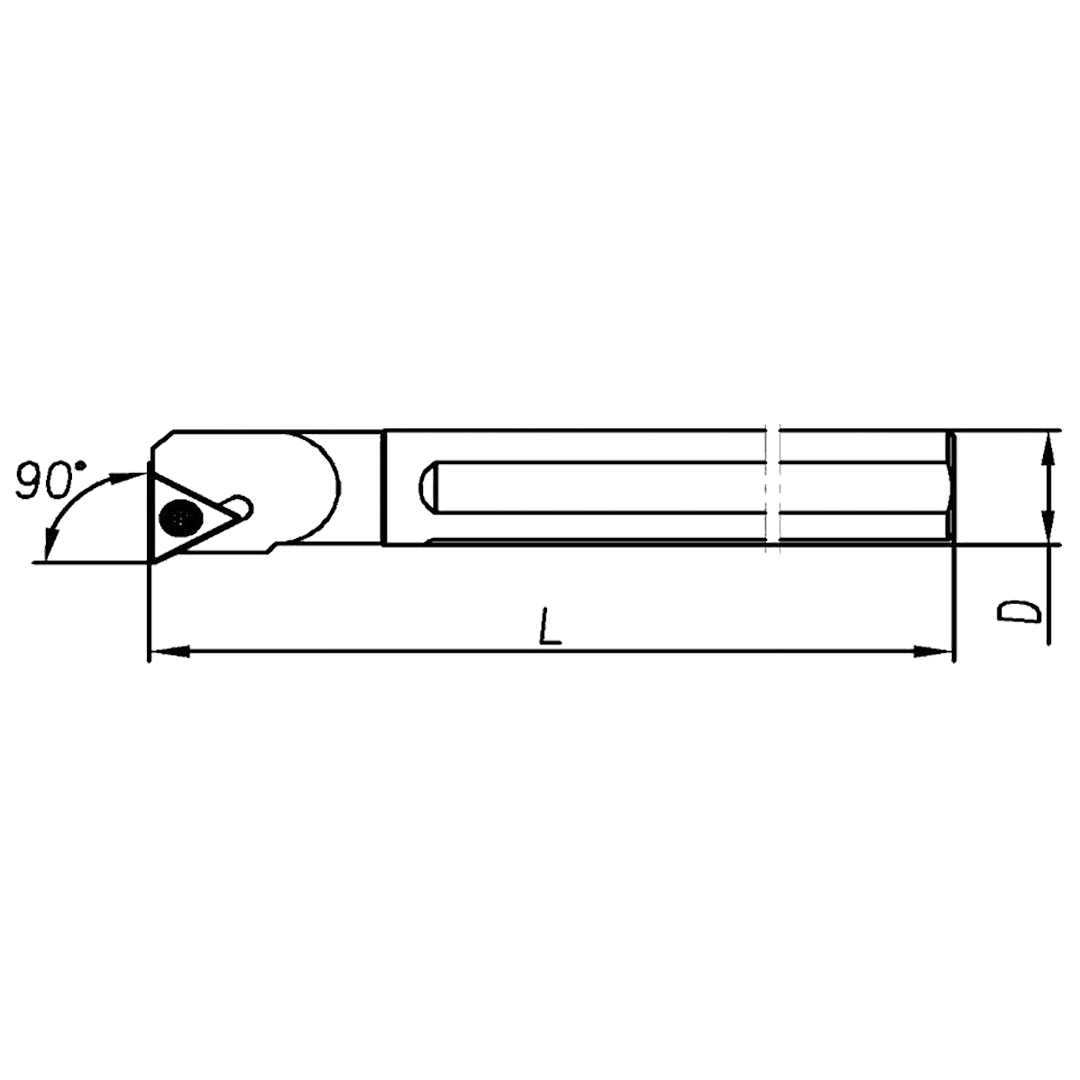

4pc indexable boring bar set diagram

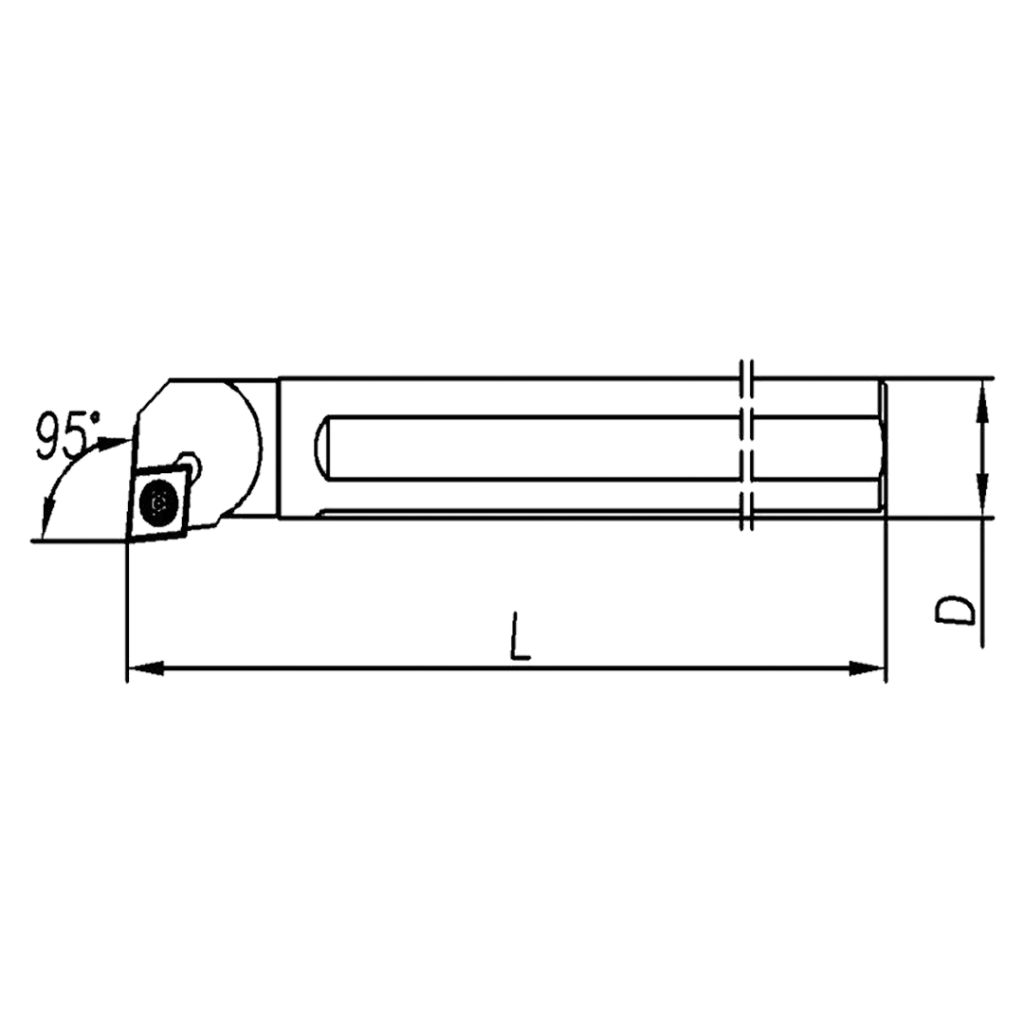

3 Piece Indexable Boring Bar
Indexable Boring Bar Sets - Image 4

Indexable Boring Bar Sets

From £130.99 inc. VAT

Quality set of metalworking bore tools. Ideal for metal turning.

Stock Code: N/A Category:

Description

Our Indexable boring bar sets are ideal for boring work, use in conjunction with our metal lathes for a precise finish.

With a set of boring bars and spanners included in a handy box.

90° Toolholders Insert Screw Wrench Shank Diameter Length
S08H-STFCR09 TCMT090204 M2.2 x 6 T8 8mm 100mm
S10K-STFCR11 TCMT110204 M2.5 x 7 T8 10mm 125mm
S12M-STFCR11 TCMT110204 M2.5 x 7 T8 12mm 150mm
S16R-STFCR11 TCMT11204 M2.5 x 7 T8 16mm 200mm
95° Toolholders
S08Q-SCLCR2 CCMT060204 M2.5 x 7 T8 8mm 180mm
S06M-SCLCR2 CCMT060204 M2.5 x 7 T8 6mm 150mm
SO5H-SCLCR32 CCMT060204 M2.5 x 7 T8 5mm 125mm
S10K-SCLCR06 CCMT060204 M2.5 x 6 T8 10mm 125mm
S12M-SCLCR06 CCMT060204 M2.5 x 6 T8 12mm 150mm
S16R-SCLCR09 CCMT060304 M4 x 10 T15 16mm 200mm
