Sale!

Ex Display Centurion 3 in 1 Machine

£1,799.00 inc. VAT

In stock

Stock Code: LAT-CENT-1-EX Category:

Description

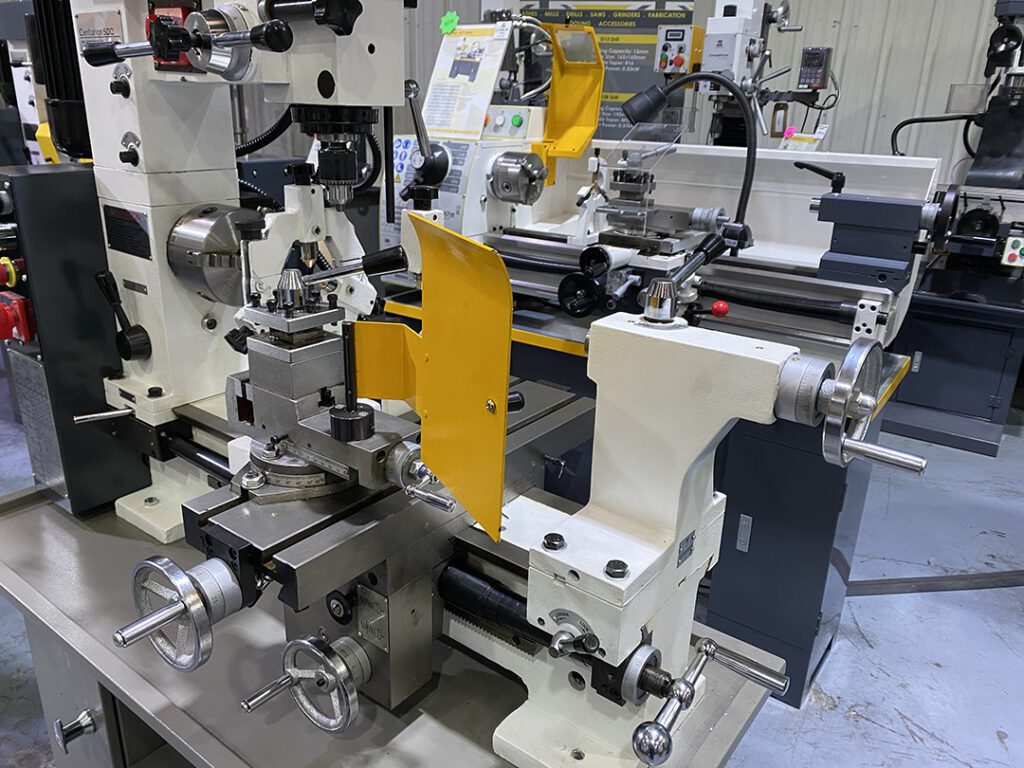

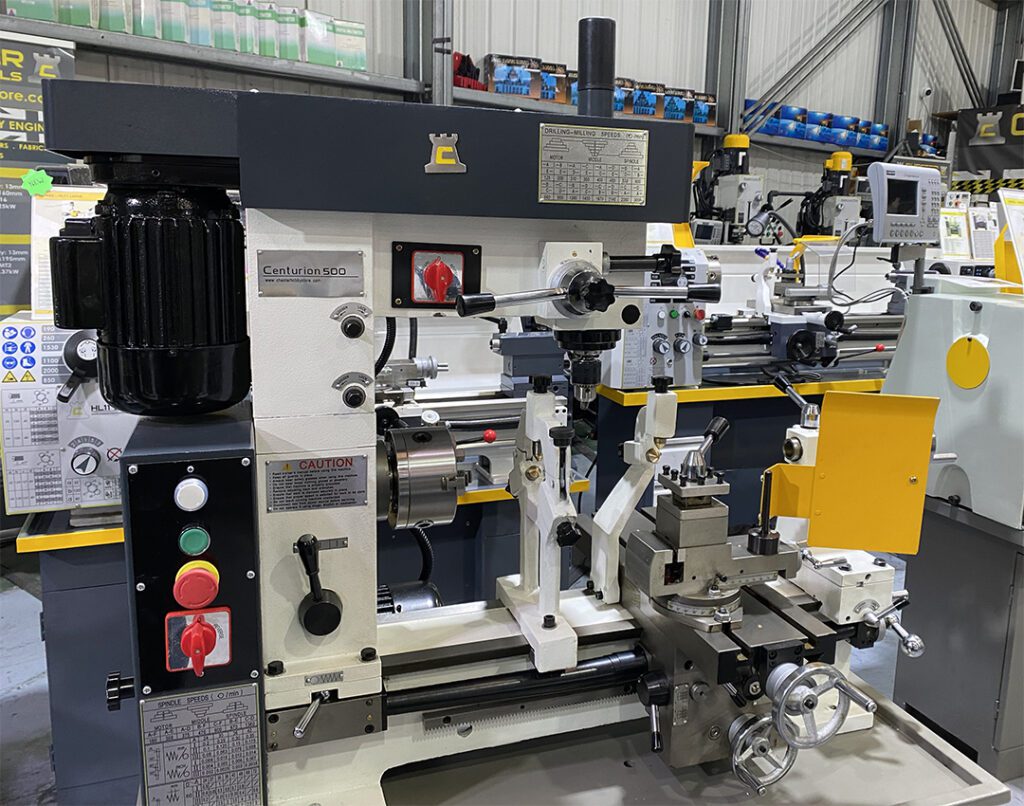

Ex display Centurion 500mm. As pictured, there are some cosmetic faults to this model.

Tray also included with this model – not pictured.

Download Manual Button

 Short BedLong Bed
Lathe
Centre Height210mm210mm
Swing Over Bed420mm420mm
Between Centres500mm800mm
Speed Range160-1360rpm160-1360rpm
Longitudinal Travel440mm740mm
Cross-slide Travel200mm200mm
Spindle Bore28mm28mm
Spindle TaperMT4MT4
Tailstock Quill Travel70mm70mm
Tailstock TaperMT3MT3
Mill
Drilling Capacity22mm22mm
End Milling Capacity28mm28mm
Face Milling Capacity80mm80mm
Table Size475x160mm475x160mm
Spindle TaperMT3MT3
Spindle Stroke110mm110mm
Spindle Speeds120-3000rpm120-3000rpm
General
Motor Power550W (0.75hp)550W (0.75hp)
Net Weight245kg380kg
Dimensions1160x580x965mm1460x580x965mm

Features

  • Powered cross-feed
  • Separate lathe and mill motors
  • Large milling table
  • 28mm spindle bore
