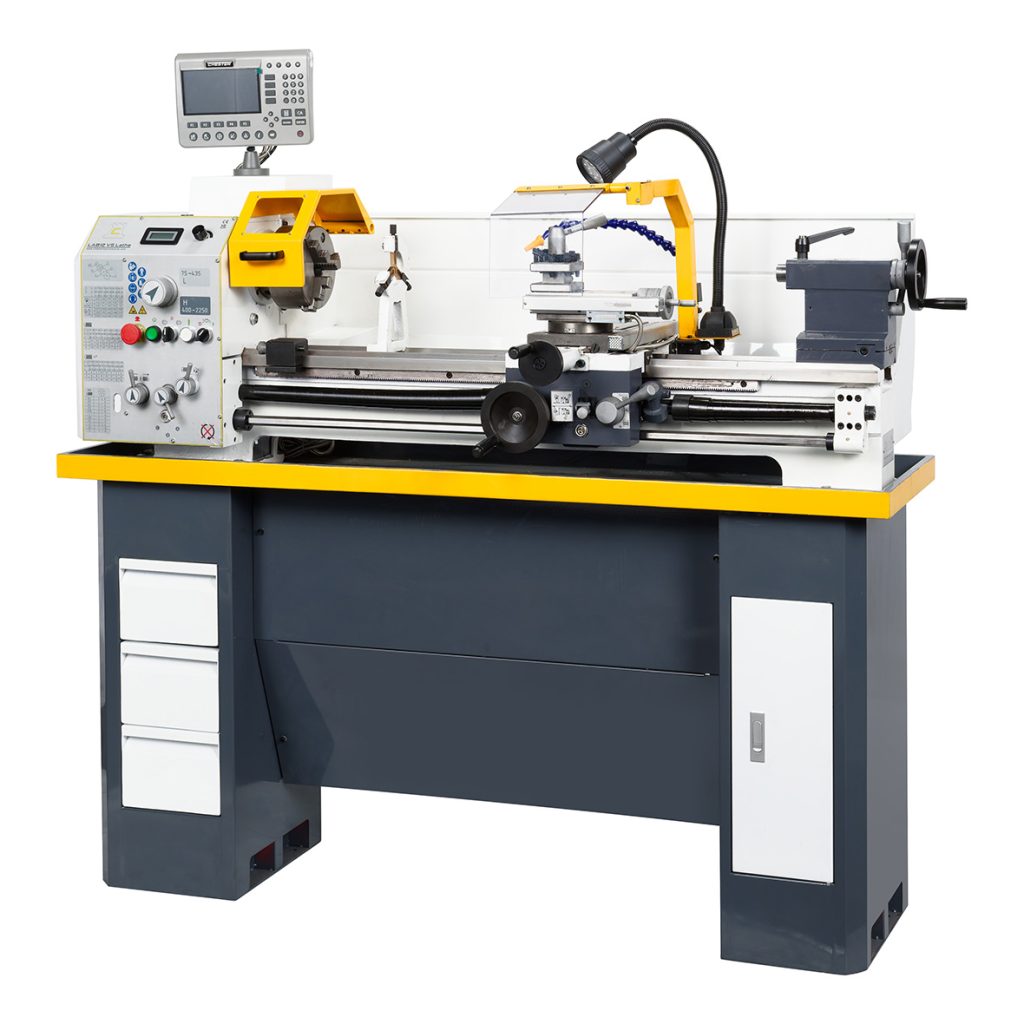

Lab12VS variable speed lathe

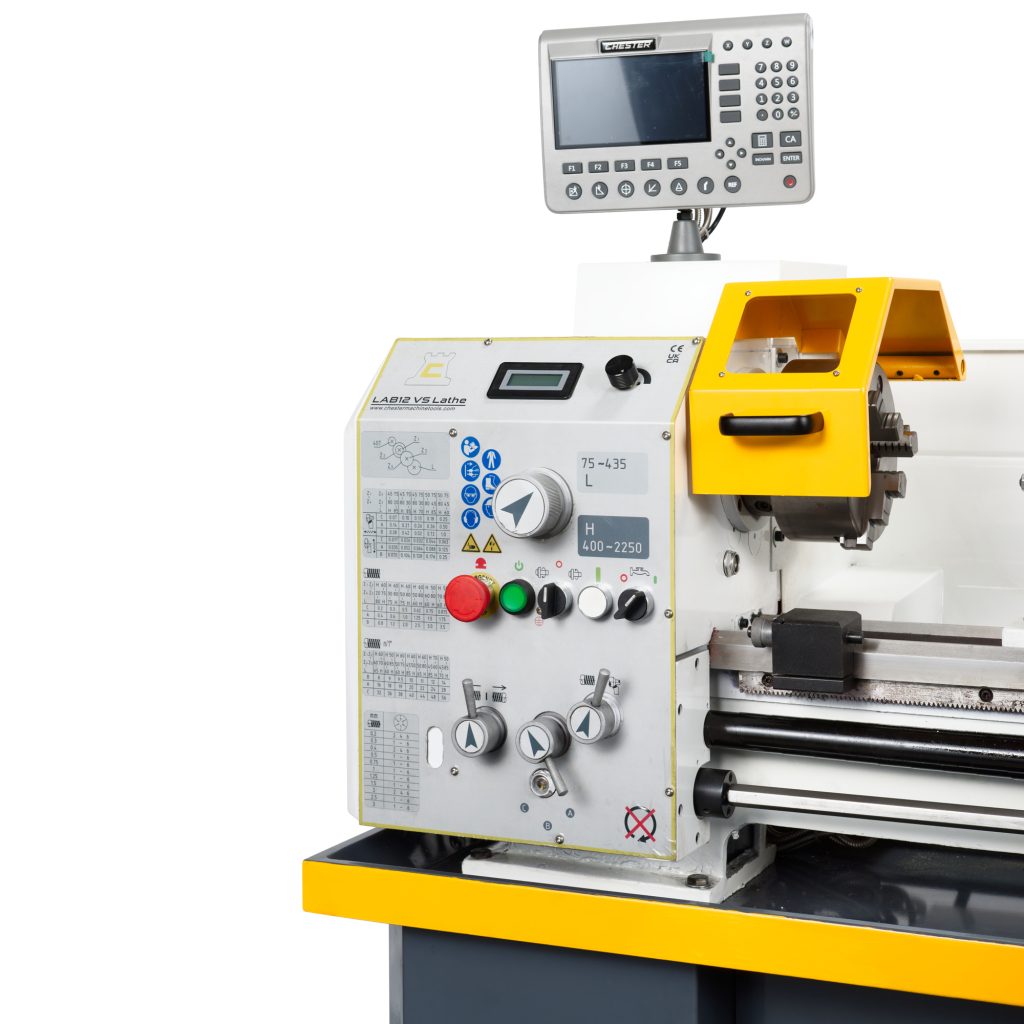

Lab12vs lathe control panel

Lab12VS Lathe

£4,236.00 inc. VAT

A precision variable speed lathe with large 38mm spindle bore and D1-4 spindle nose.

Call us today on 01244 531631 to place a 10% deposit to secure yours today



New stock on the way.

Email when stock available

Stock Code: LAT-LAB12-VS-240 Categories: ,

Description

Our Lab12VS lathe is new into our range, a precision machine that’s ideal for hobby workshops and engineers.

With variable speed spindle, this powerful machine features a handy built in tool cabinet and taper roller bearing headstock.

Download Manual Button

Centre height 160mm
Swing over bed 320mm
Distance between centres 880mm
Swing over cross slide 200mm
Cross slide travel 165mm
Top slide travel 85mm
Width of bed 180mm
Spindle nose D1-4
Spindle bore 38mm
Spindle taper MT5
Number of spindle speeds 2
Range of spindle speeds 75-435rpm, 440-2250rpm
Rotation of tool slide +/-60º
Tailstock quill diameter 32mm
Tailstock quill travel 80mm
Tailstock quill internal taper MT3
Longitudinal feeds 0.017-0.25mm/r
Cross feeds 0.07-0.52mm/r
Metric threads 0.20-3.5mm (18 kinds)
Imperial threads 8-56tpi (21 steps)
Leadscrew pitch 3mm
Motor power 1.5kW (2hp)
Coolant pump motor 0.04kW (0.05hp)
Dimensions 1590 x 710 x 565mm
Net weight 300kg (without stand)

Features

  • Hardened and ground bedways
  • Independent lead screw and feed rod
  • Taper roller bearing headstock
  • Tool cabinet
  • 3 Axis DRO
  • LED work light
  • Variable speed spindle
  • Digital read out
  • Coolant system
  • Four way tool post
  • Thread chasing dial
  • Single position micrometer bed stop



Included accessories

  • 3 and 4 jaw 160mm chucks
  • Fixed and travelling steadies
  • Reducing sleeve
  • Steel centre
