Boring Head Shanks
From £22.99 inc. VAT
Shanks for boring heads. Precision milling tool.
Description
Our boring head shanks are ideal for adapting boring heads for use with our milling machines.
Available in a range of sizes to suit your requirements.

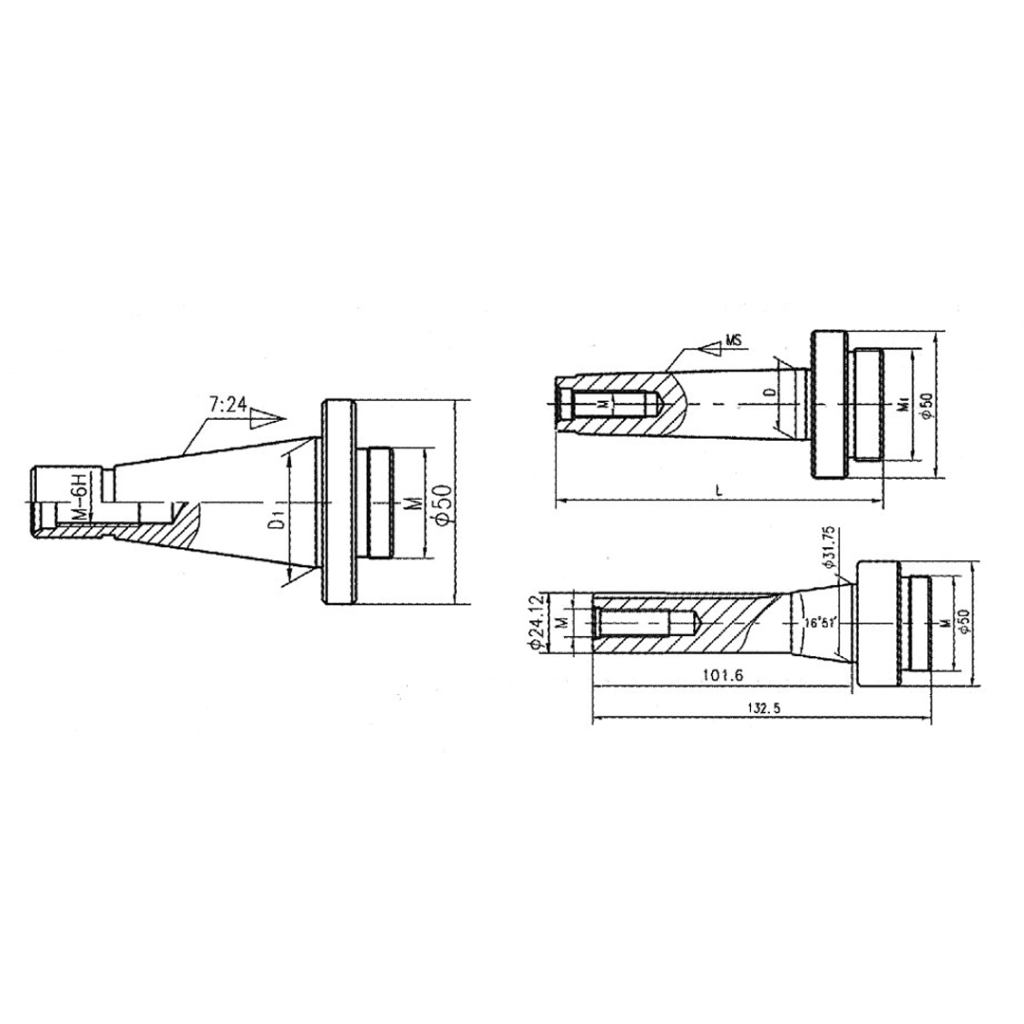

| Taper | Connection | Length | Tapping |
|---|---|---|---|
| MT2 | 1 1/2" x 18tpi | 93mm | M10 |
| MT3 | 1 1/2" x 18tpi | 110mm | M12 |
| MT4 | 1 1/2" x 18tpi | 133mm | M16 |
| R8 | 1 1/2" x 18tpi | 132.5mm | 7/16" UNF |
| ISO30 | 1 1/2" x 18tpi | 102mm | M12 |
| ISO40 | 1 1/2" x 18tpi | 135mm | M16 |
| ISO50 | 1 1/2" x 18tpi | 168mm | M24 |
